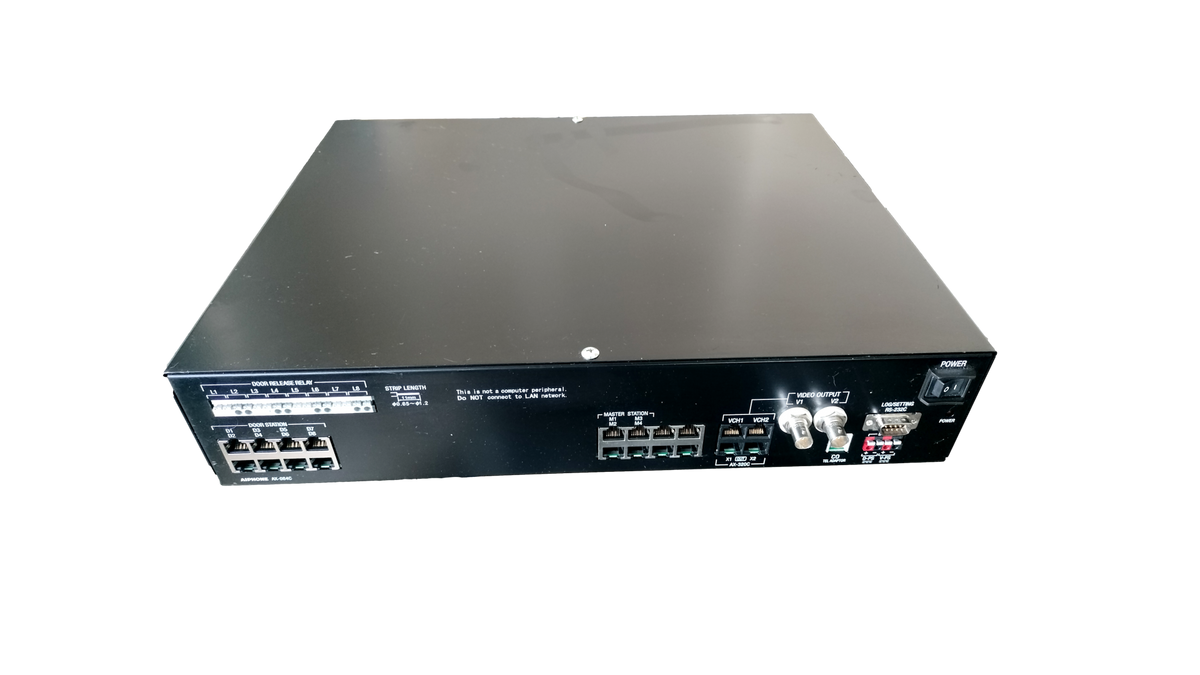

Condition Used (Good condition. Commercial-grade Aiphone AX Series integrated audio/video security intercom central exchange unit. Model AX-084C. Features terminals for 8 Door Stations (RJ45), 8 Door Release Relays (screw terminal strip), 2 Video Outputs (BNC), and RS-232C setting port. Housing and connector terminals are fully intact. Pulled from an active building security installation. Untested and sold AS-IS.)
ITEM SPECIFICS
Brand: Aiphone
Model: AX-084C
Type: Intercom Central Control Unit / Exchange Matrix

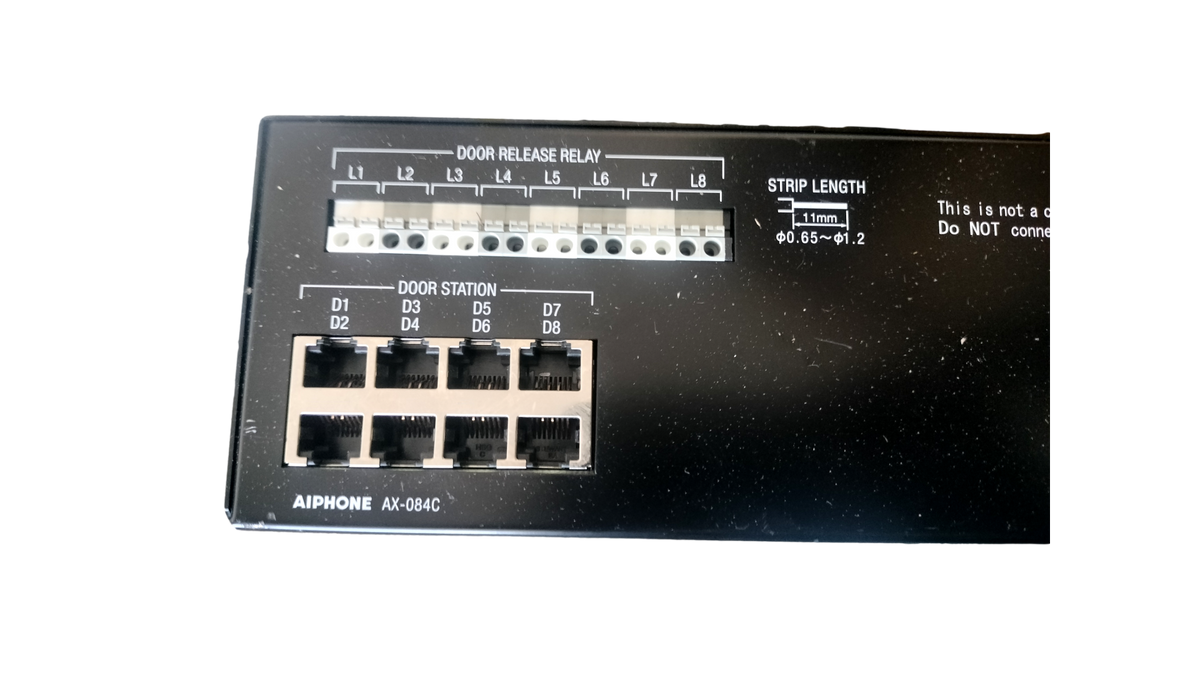

Door Station Ports: Supports up to 8 Door Stations (RJ-45 ports D1–D8)
Master Station Capacity: Supports up to 4 Master Stations (RJ-45 X1/X2 expandability)
Door Release Relays: 8x Programmable Relay Contact Outputs (L1–L8)

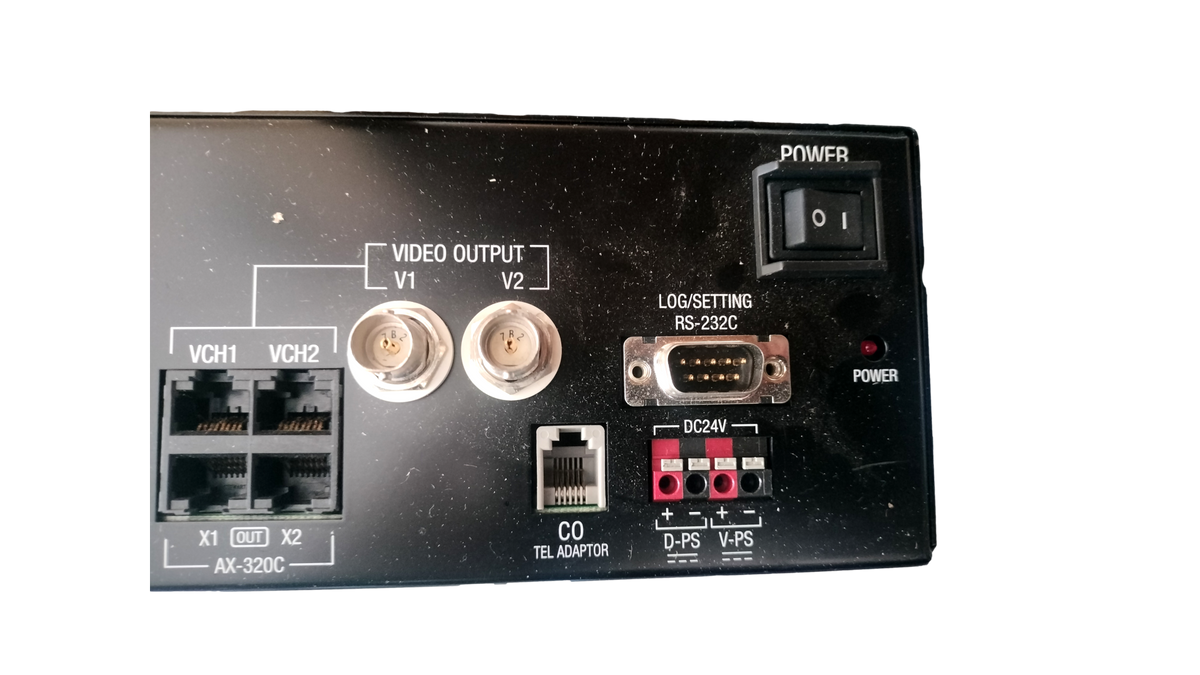

Video Outputs: 2x BNC Composite Video Ports (V1 / V2)
Serial Port: RS-232C DB9 (Log/Setting)

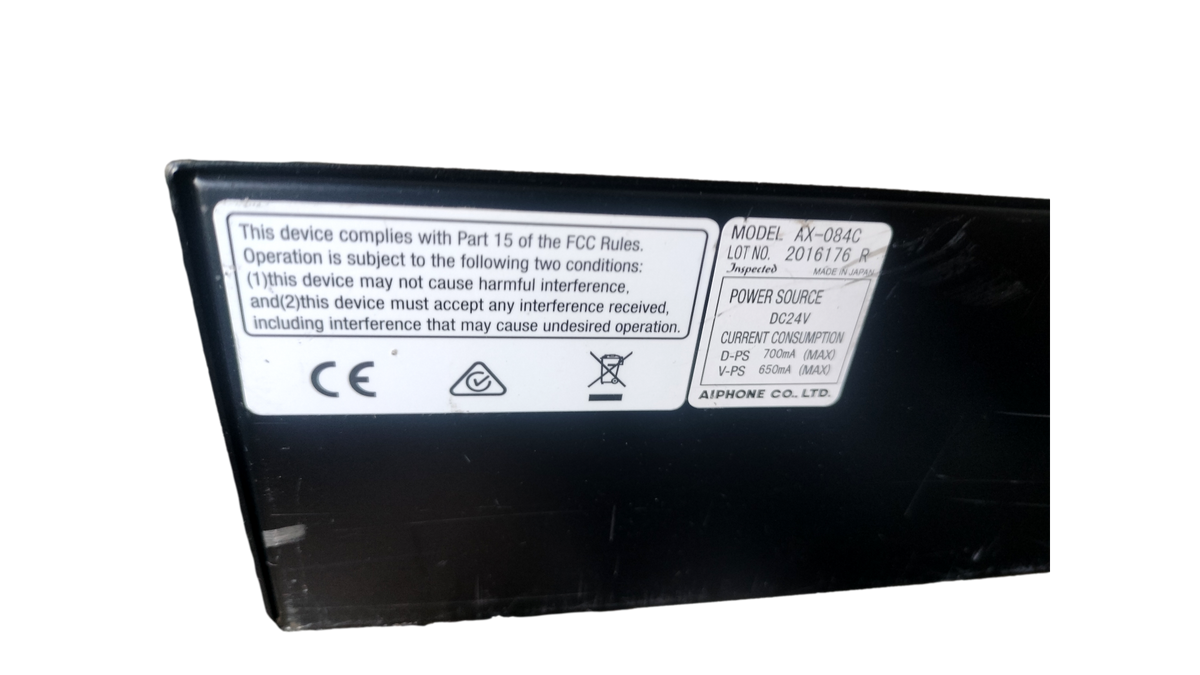

Power Input Required: 24V DC (D-PS / V-PS push-in terminals)

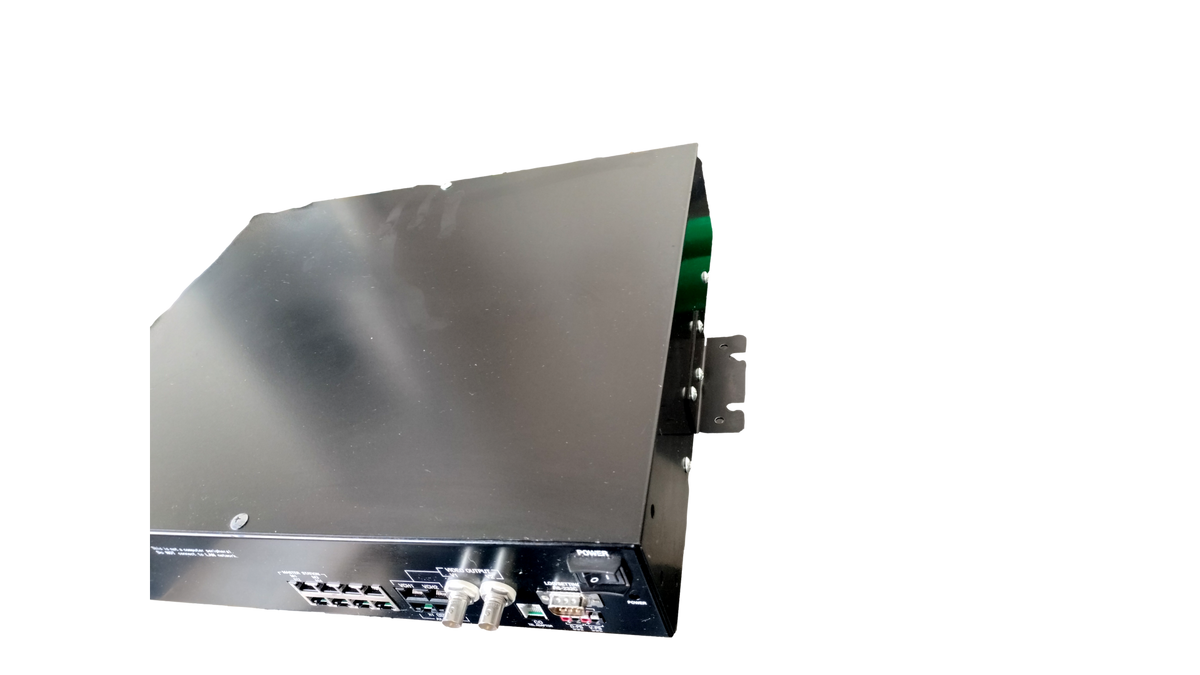

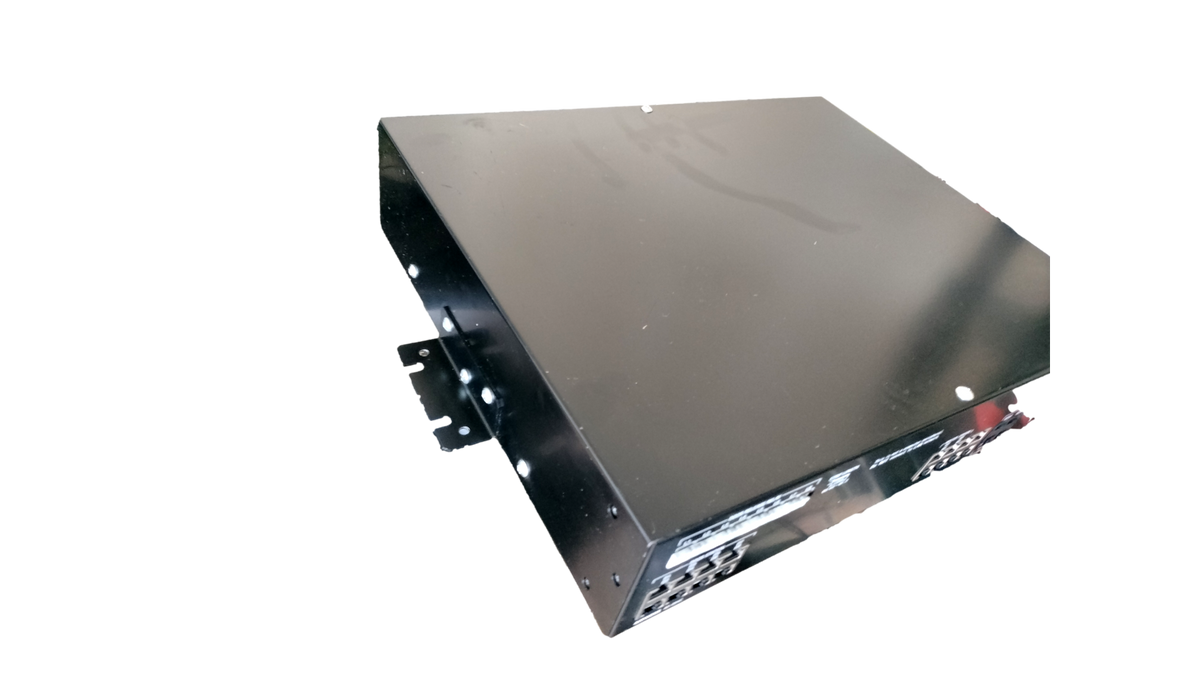

Mounting: 19" Rack-Mountable or Wall-Mountable Chassis
